 CERAMIC/ SINTERED STONE/ ULTRA-COMPACT SURFACE

Ceramic panels have excellent impact resistance, weather resistance, and a wide range of textures and colors.

U-kon Systems created systems with wall brackets and thermal isolators to attach ceramic panels on the wall using patented technology and a unique combination of vertical and horizontal profiles which allow mounting ceramic panels with hidden or visual methods.

SYSTEM ATS/LT-316

Description



A concealed way of fastening the cladding panels from natural stone.  Allows mounting the stone panels with a vertical offset relative to each other.

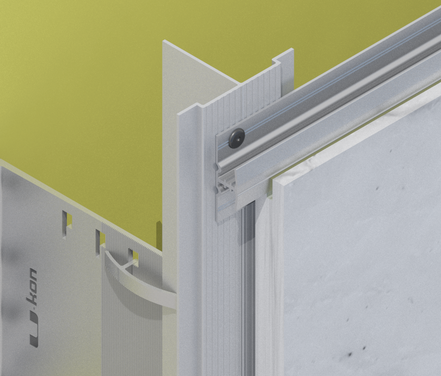

The cladding is fixed to the system of vertical and horizontal profiles. Facing panels are installed on horizontal rails, for which in the lower and upper ends of the panel the cut is made.



Attachment blocks

- Aluminum wall brackets

- Stainless steel wall brackets (Passive House Facade Anchoring component)

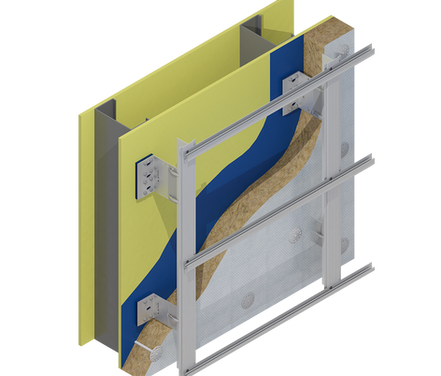

STRUCTURE


DO YOU

HAVE

QUESTIONS?

CALL US
1 844 666 8008

Wall brackets

U-kon brackets are designed to simplify and accelerate the process of installing cladding systems.



U-kon clips come in a wide range of sizes to provide the depth of the system from 50 mm (2") to 280 mm (11").



Vertical Profiles

LT Systems supplied with vertical profiles "T" and "L" shapes.

ATS Systems supplied with "U" or "Tube" shape vertical profiles



Thermal isolator

Thermal isolators separate wall brackets and walls thereby reducing thermal losses and creating a better thermal performance of the cladding system. Each wall bracket has an individual thermal isolator.

System Specification

Shape of cladding material: Flat,

Type of cladding material: Ceramic, Ultra-compact surface, Sintered stone

Attachment method: Concealed

DOWNLOADS

System ATS/LT-316
