TERRACOTTA PANELS

Thermally broken rainscreen attachment systems for terracotta panels

- ALPHATON Panels

- TERRART Panels

- Argeton Panels

- TERREAL Panels

- AGROB BUCHTAL Panels

- Kmew (Ceraclad)

- NBK Keramic

- CN terracotta

SYSTEM ATS/LT-414

Description

Option 1

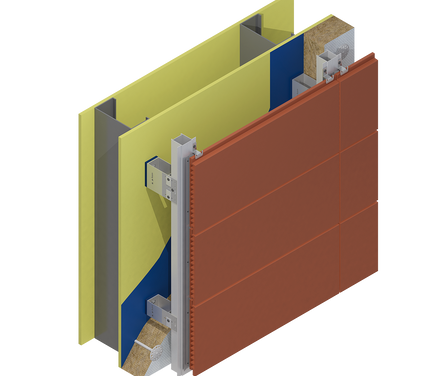

The special clams made from aluminum or stainless steel fixing on vertical profile to fix terracotta panels on the wall

Option 2

The horizontal profiles are attached to vertical girts. Terracotta panels are installed on horizontal profiles, the shelves of which engage with the grooves in the horizontal ends of the panels.

Attachment blocks

- Aluminum wall brackets

- Stainless steel wall brackets (Passive House Facade Anchoring component)

The visible profile surfaces are available in matching color upon request.

STRUCTURE


DO YOU

HAVE

QUESTIONS?

CALL US
1 844 666 8008

Wall brackets

U-kon brackets are designed to simplify and accelerate the process of installing cladding systems.



U-kon clips come in a wide range of sizes to provide the depth of the system from 50 mm (2") to 280 mm (11").



Vertical Profiles

LT Systems supplied with vertical profiles "T" and "L" shapes.

ATS Systems supplied with "U" or "Tube" shape vertical profiles



Thermal isolator

Thermal isolators separate wall brackets and walls thereby reducing thermal losses and creating a better thermal performance of the cladding system. Each wall bracket has an individual thermal isolator.

System Specification

Shape of cladding material: Flat, 3D shapes

Type of cladding material:  Terracotta panels

Attachment method: Concealed

DOWNLOADS

System ATS/LT-414
